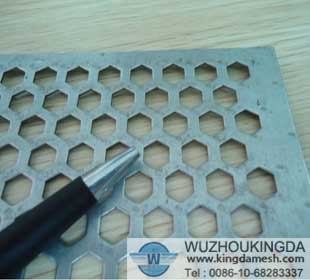

Perforated stainless steel

Category:Perforated Metal Mesh
Material:Low carbon steel plate, stainless steel plate, copper plate
Properties:perforated mesh
Application:used in mining, medicine, grain selection, indoor sound insulation, silencers

tags:
Stainless steel,perforated mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

Perforated stainless steel
Material: Galvanized, Low carbon steel, SS304, 316, Aluminum.
Thickness: 0.3-12mm
Length, Width: 1x2m, 1.

Stainless steel perforated
Material: Low carbon steel plate, stainless steel plate, copper plate, nickel plate. Stainless steel plate, aluminum, hot and cold steel, copper and fiber, plastic sheeting and other non-metallic plate.

Features: Flat surface, smooth, beautiful, strong and durable, wide application.
Specifications: Coil sheet 1X20m, flat sheet 1X2m.

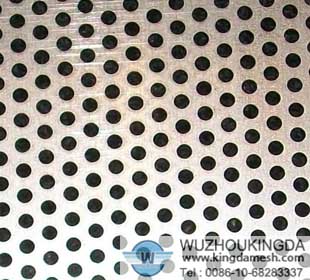

Stainless steel perforated mesh
Hole Patterns including: Round; Rectangular; Square; Triangle; Diamond; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Processing: Punching

Uses: Mining, medicine, grain selection, indoor sound insulation, silencers, ventilation, grain storage and machine protection

specification
material	thickness (mm)	Aperture (mm)	hole spacing (mm)	Width (m)	length (m)	Punching rate (%)	weight (kg/m2)
Coil sheet	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat sheet	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
stainless metal plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
