Welded mesh guards
1. Material: Metal wire low carbon steel wire, stainless steel wire (ss304. ss316,), etc. Galvanized welded Mesh is one of the most versatile of all Wire Cloth products. Weld mesh is a welded steel wire mesh manufactured from bright drawn mild steel wire, electrically welded at all intersections; Hot-dipped galvanized or Electro galvanized before welding
2. Surface treatment: Electric galvanized, hot dipped galvanized, PVC coated (all colors).
3. Welded mesh guards Features:
• Versatile • High strength • Easy cutting, shearing • Flush edge finish
• All intersections welded• Solid construction • Wires hold together • Easy handling
Welded mesh guards are strong and durable. These products are made by dipping previously welded mesh into a bath of molten zinc. The entire fence or mesh, including the welded areas, is thoroughly sealed and protected against rust and corrosion. Because it is covered with so much more zinc than galvanized before welded wire fencing, it will last years longer. KFSH welded meshes and fences are available in a wide variety of gauges and mesh sizes. These determine the final use of the product. Smaller meshes made with lighter gauge wires are ideal for making long lasting cages for small animals. The heavier gauges and meshes with larger openings make durable fences for animals. They have many uses around the home.
4. Welded mesh guards Applications
Cages, Large Animal Enclosures, Lockers, Gabions, Security Guards, Pallets, Grilles, Bins/Baskets, Machine Guards, Fencing, Window Guards, Gates, Catwalk Guards, Panel Inserts, Safety Barriers, Ceilings, Racking/Shelving, Containers, Litter Bins, Partitions, Girder Lagging, Trailer Sides, Stairway Guards, Grain Storage Silos.
5. How to Order Welded mesh guards:
5.1 Quantity: number of pieces, rolls or screens
5.2 Type of material: carbon steel, stainless steel, etc...
5.3 Width and length
5.4 Wire diameter
5.5 Wire opening: in mesh or clear opening
5.6 Type: welded mesh or woven mesh (state weave desired)
5.7 Special fabrication needed

Reference specifications of Welded mesh guards:

Panel size (height x length)	Wire dia.		Mesh size		Surface treatment		Folds ( or no folds as your request)
1.03m	3mm-6mm		50x75mm 50x100mm 50x150mm 50x200mm 75x100mm 55x200mm 60x150mm Or as your request		Electro GI+PVC coated Electro GI+PVC painting(Spraying) hot-dipped GI only Hot-dipped GI +PVC coated or painting		2
1.23m							2
1.5m							2 or 3
1.53m							2 or 3
1.7m							3
1.73m							3
1.8m							3 or 4
1.93m							3 or 4
2.0m							4
2.03m							4
2.4m							4
Post specification
post items		Post dia.		Post thickness		Post length
Square post		40x60mm or 60x60mm		1.2-3mm		1.5m-2.9m
Peach shape post		50x70mm or 70x100mm
Round post		38mm, 40mm, 50mm,70mm

As factory manufacturer, we can produce according to your special requirements.



•
  Plastic coated weld mesh
•
  Powder coated weld mesh
•
  Plastic coating welding mesh
•

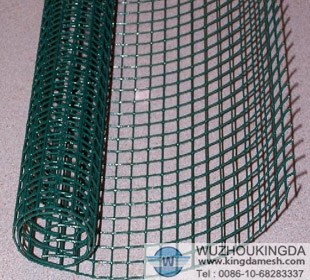

  Green PVC coated welded wire mesh
•
