Perforated sheet metal

Category:Perforated Metal Mesh
Material:low carbon steel sheet, stainless steel sheet, aluminum sheet
Properties:net surface flat, smooth, beautiful, strong and durable
Application:for producing of vibrating screen for oil field drilling, mine screening, engineering

tags:
perforated sheet metal,perforated metal mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

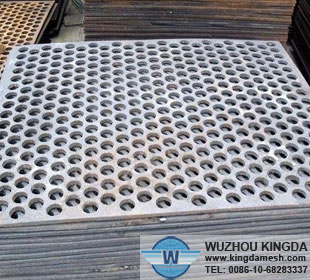

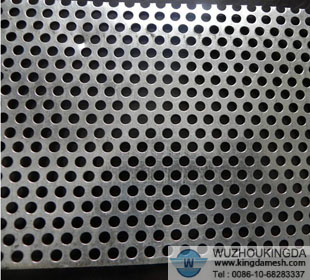

Perforated sheet metal
Material: low carbon steel sheet, stainless steel sheet, aluminum sheet
Specifications of the perforated sheet metal:
Length: 4m
Width: 0.1m to 1.5m
Hole size: 0.1mm to 8.0mm
Thickness: 0.5-3.0mm

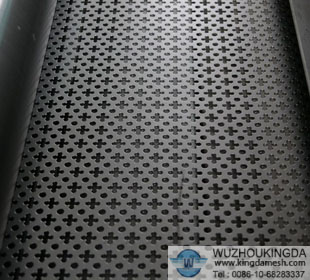

Perforation patterns: Round perforations, square perforations, slotted perforations, fish scale perforations, hexagonal perforations, cross perforations as well as some other special patterns
Features of the perforated sheet metal:
Net surface flat, smooth, beautiful, strong and durable, there is a wide range of uses.
Applications of the perforated sheet metal:
With the most complicated and beautiful designs for producing of vibrating screen for oil field drilling, mine screening, engineering, sifting of grains, decorations and designs of buildings.

If you are interested, please feel free to contact the following: TEL: 0086-10-68285557 E-mail: service.wzjd@hotmail.com

Reference specifications of the perforated sheet metal:

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6
