Perforated metal ceiling panels

Category:Perforated Metal Mesh
Material:aluminum sheet, galvanized steel sheet
Properties:winding-resisting, ageing-resisting, flat and smooth surface
Application:widely used in filter of automobiles internal-combustion engine, sieving of mine

tags:
perforated metal mesh,perforated metal panel,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

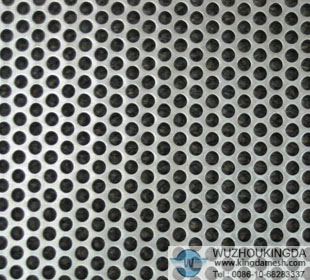

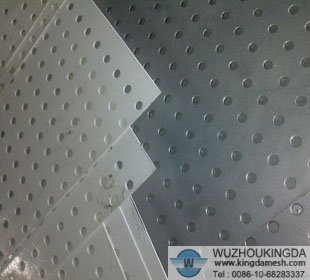

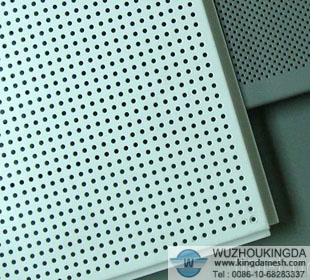

Perforated metal ceiling panels
Material: aluminum sheet, galvanized steel sheet
Specifications:
Size: 600x600, 600x1200, 300x1200, 600x1800, custom-made
Diameter of perforated holes: 1mm to 10mm, etc.
Open area: 3% to 26%
Thickness = 0.5mm - 1.0mm
Hole style: circular hole, hexagonal hole, fish scale hole, etc. Production can be made in different material, style or hole diameter.
Characteristics of the perforated metal ceiling panels:
With the character of winding-resisting, ageing-resisting, flat and smooth surface, it is strong and serviceable.
Applications of the perforated metal ceiling panels:
It is widely used in filter of automobiles internal-combustion engine, sieving of mine, medicine, grain, sound insulation of room, ventilate of grain depot, etc.

If you are interested, please feel free to contact the following: TEL: 0086-10-68285557 E-mail: service.wzjd@hotmail.com

Reference specifications of the perforated metal ceiling panels:

Plate Material	Thickness of Metal(mm)	Hole Dia.(mm)	Pitch (mm)	Sheet Width(m)	Sheet Length(m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat Plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.266
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5	8	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23
