Perforated mesh sheet

Category:Perforated Metal Mesh
Material:stainless steel wire, iron plate, copper plate, aluminum plate
Properties:the surface is flat, smooth, beautiful, firm and practical
Application:Widely used in the core of filter, medicine, filtering, breeding

tags:
perforated metal mesh,perforated sheet,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

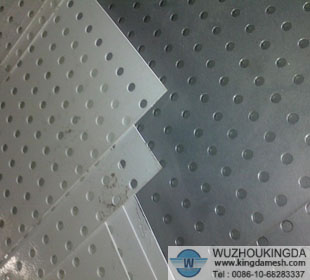

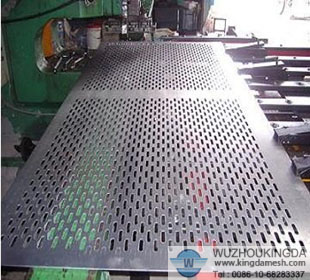

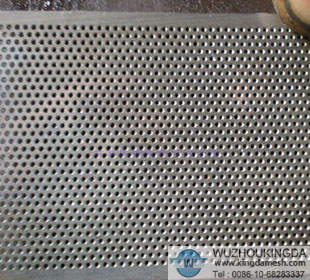

Perforated mesh sheet
Materials: stainless steel wire, iron plate, copper plate, aluminum plate
Specifications of the perforated mesh sheet:
(1)Cold rolled steel sheet
Thickness: 0.2mm-1mm
Length: 1m-20m
Hole Diameter: 0.8mm-10mm
(2)Plate
Thickness: 0.3mm-10mm
Size:≤1.5×3m
Hole Diameter: 0.8mm-100mm
Characteristics of the perforated mesh sheet:
The surface is flat, smooth, beautiful, firm and practical. It has wide usages.
Applications of the perforated mesh sheet:
Widely used in the core of filter, medicine, filtering, breeding, battery, mechanical protecting, making the crafts, the meshes for the high-grade, sound box, decoration, the seating for children, baskets, etc.

If you are interested, please feel free to contact the following: TEL: 0086-10-68285557 E-mail: service.wzjd@hotmail.com

Reference specifications of the perforated mesh sheet:

Plate material	Thickness of metal(mm )	Hole Dia.(mm)	Pitch (mm)	Sheet Width(m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	44	0.88
	0.35	5	4	1	24	2
	0.45	6	3	1	35	2.5
	0.8	3	3	1	19.6	3
Flat plate	0.5	1	1	1	19.6	3.14
	0.55	1.1	2.2	1	22.67	3.411
	0.55	1.5	2.8	1	26.03	3.268
	0.8	1.5	1.5	1	19.6	5
	0.8	2	3.4	1	30.78	4.465
	1.5	2	2	1	19.6	9.4
	1.5	5	8.0	1	35.39	7.843
	3	5	16	1	19.6	18.8
Stainless steel plate	0.5	1	1	1	19.6	3.14
	0.8	1.5	1.5	1	19.6	5
	1	2	2	1	19.6	6.28
	2	5	16	1	19.6	6.28
Aluminum plate	0.5	1	1	1	19.6	1.08
	0.8	3	3	1	19.6	1.72
	1.6	2	2	1	19.6	3.24
	3	4	16	1	19.6	4.23
