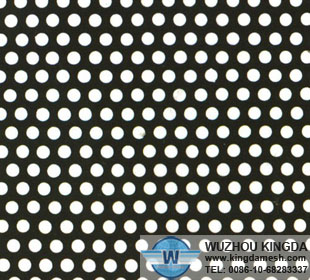

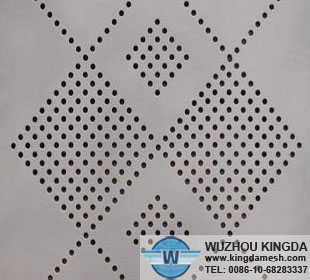

PVC perforated metal mesh
Material: low carbon steel sheet
Surface treatment: PVC coated into different color
Specifications of the PVC perforated metal mesh:
Thickness: 0.2mm-10mm
Hole size: 0.5mm-100mm
Width: 0.5-2m
Length>=0.5m
Features of the PVC perforated metal mesh:
High precise, small deviation, the netting is flat and smooth, beautiful durable and firm structure
Applications of the PVC perforated metal mesh:
For decoration, screening, separation, sifting, filtration, drying, cooling, cleaning and other specifications in civil construction, mechanical device protection, handicraft, cover, road, bridge, step etc.

If you are interested, pls feel free to contact us. TEL: 0086-10-68283337. Email: service.wzjd@hotmail.com

Reference specifications of the PVC perforated metal mesh:

Specifications of the perforated metal mesh
material	thickness (mm)	Aperture (mm)	hole spacing (mm)	wide (m)	length (m)	Punching rate (%)	weight (kg/m2)
Coil sheet	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat sheet	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
stainless metal plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
aluminium plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
