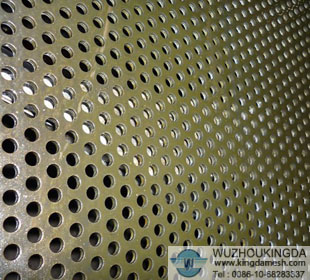

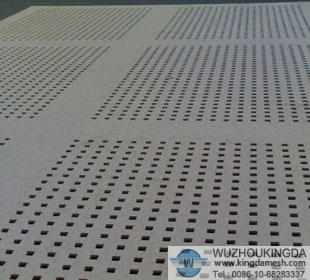

Metal perforated sheet

Category:Perforated Metal Mesh
Material:Low carbon steel sheet, stainless steel plates, Aluminum sheet
Properties:sturdy and durable, elegant appearance
Application:Widely used in mining, medicine, food selection, indoor sound insulation, silencers

tags:
perforated metal mesh,perforated sheet,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

Metal perforated sheet
Material: Low carbon steel sheet, stainless steel plates, Aluminum sheet
Specifications of the metal perforated sheet:
(1) Cold rolled steel sheet
Thickness: 0.2mm-1mm
Length: 1mm-20mm
Hole diameter: 0.8mm-10mm
(2) Plate thickness: 0.3mm-10mm
Size: 1.5x3m
Hole diameter: 0.8mm-100mm
Hole shape: Long, square, round hexagon, diamond, plum blossom and all kinds of abnormal shape
Features of the metal perforated sheet:
Sturdy and durable, elegant appearance, high precision, small deviation and good quality
Applications of the metal perforated sheet:
Widely used in mining, medicine, food selection, indoor sound insulation, silencers, ventilation, grain storage, mechanical protection,

If you are interested, please feel free to contact the following: TEL: 0086-10-68285557 E-mail: service.wzjd@hotmail.com

Reference specifications of the metal perforated sheet:

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23
