Stainless steel perforated mesh

Category:Perforated Metal Mesh
Material:Stainless steel, Carbon Steel, Galvanized
Properties:smooth surface, beautiful shape, extensive usage
Application:used for chemical industry, screening industry

tags:
Stainless steel perforated mesh, perforated mesh,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

Stainless steel perforated mesh
The specifications of Stainless steel perforated mesh
1. The materials: Stainless steel, Carbon Steel, Galvanized, Aluminium, Brass, Copper

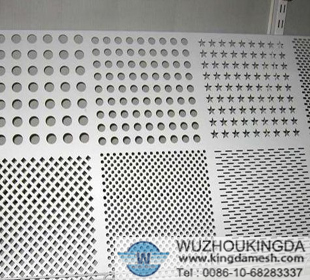

2. Hole Shapes: long square hole, square hole, round hole, triangle hole, hexagonal hole, the plum blossom hole, scale hole and other different kinds of hole
3. Surface treatment : Galvanized or not , PE or PVC in many colors .
4. Packing: according to customers requirement
The features of Stainless steel perforated mesh
smooth surface, beautiful shape, extensive usage, readily formed, Easy installation, painted or polished and anodizing, Uniform sound abatement, Attractive appearance, Light weight, Durable, Superior abrasion resistances.
The applications of Stainless steel perforated mesh
1. Applications: used for chemical industry, screening industry, equipment protection, battery electrodes, liquid and solid filtration.
2. USES: Mainly used in the core of filter ,filtering, battery, high grade sound box, the seating of children, decoration, basket, municipal environmental noise control barrier, ceiling, chairs, protective cover, balcony, generator room ,ornate speaker nets, grinding sieve, food cover, shelves of shopping malls, boiler.
If you are interested in our products, pls feel free to contact us. TEL: 0086-10-68283337, Email: service.wzjd@hotmail.com

Reference specification of Stainless steel perforated mesh

Material	Panel thickness (mm)	Aperture (mm)	Pitch (mm)	Plate width (m)	Plate length (m)	Opening area (%)	Weight (kg/m2)
Coil panel	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat panel	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
Stainless steel panel	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum panel	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
