Perforated plate
Material: stainless steel board, aluminum board, cold and hot steel board
Specification: 1 thickness 0.2mm-1mm, wide *length <1.5m*20m
             Aperture 3mm-10mm
            2 thickness 0.2mm-3mm; width * length ≤ 1.5m * 5m
             Aperture 0.25mm-200mm
Feature: light weight, skid prevention and artistic, smoothly surface, beautiful, extensively usage.
Color: silver, red, green, yellow, blue etc.

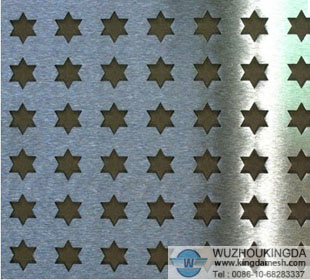

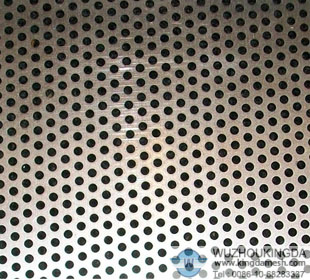

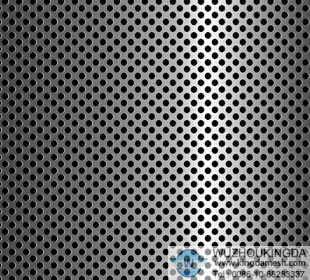

Shape: long square hole, square hole, round hole, triangle hole, hexagonal hole, the plum blossom hole, ichthyosisthe hole, scale hole and other different kinds of hole, we can process the different kinds of type according the customer order.
Applications of the perforated plate:
It is widely used to civil construction, mechanical device protection, handicraft manufacture, upscale sound heart cover, grain ventilates.
It also can be used in architectural, the road, and the bridge. The product quality has achieved the national standard and the profession examination standard.

Reference specification of the perforated plate:

Plate Material	Thickness of Metal (mm)	Hole Dia. (mm)	Pitch (mm)	Sheet Width (m)	Sheet Length (m)	Porosity (%)	Weight (kg/m2)
Rolling plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat plate	0.5	1	1	1	2	19.6	3.14
	0.55	1.1	2.2	1	2	22.67	3.411
	0.55	1.5	2.8	1	2	26.03	3.268
	0.8	1.5	1.5	1	2	19.6	5
	0.8	2.0	3.4	1	2	30.78	4.465
	1.5	2	2	1	2	19.6	9.4
	1.5	5.0	8.0	1	2	35.39	7.843
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum plate	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.6	2	2	1	2	19.6	3.24
	3	4	16	1	2	19.6	4.23
