Perforated metal panels

Category:Perforated Metal Mesh
Material:low-carbon steel plate, stainless steel plate
Properties:surface is flat, smooth, beautiful, firm and practical
Application:used to filter in the car internal-combustion engine; mine, medication

tags:
perforated mesh,perforated metal panels,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

Perforated metal panels
Material: low-carbon steel plate, stainless steel plate, aluminum sternum, aluminum magnesia alloy sternum.
Manufacture and characteristics: It is made by punching. The characteristics are bend-resisting, aging-resisting, not easily to rust, wide uses. The surface is plain, smooth and practical.
Features of the perforated metal panels:
The surface is flat, smooth, beautiful, firm and practical. It has wide usages.

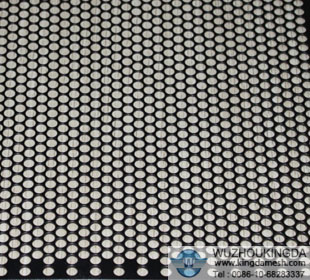

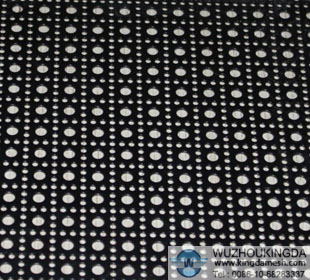

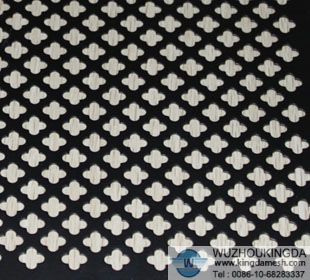

Shape: long square hole, square hole, round hole, triangle hole, hexagonal hole, the plum blossom hole, ichthyosisthe hole, scale hole and other different kinds of hole, we can process the different kinds of type according the customer order.
Surface treatment: Hot-dip galvanized, electro galvanized, and PVC coated, etc.
Normally packed by pallet, client’s requirement is available
Applications of the perforated metal panels:
It is used to filter in the car internal-combustion engine; mine, medication and food screening; indoor sound insulation and aeration of grain depot.

Reference specifications of the perforated panels:

Material	Panel thickness (mm)	Aperture (mm)	Pitch (mm)	Plate width (m)	Plate length (m)	Opening area (%)	Weight (kg/m2)
Coil panel	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat panel	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
Stainless steel panel	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum panel	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
