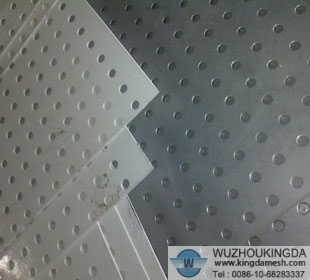

Perforated aluminum sheet

Category:Perforated Metal Mesh
Material:aluminum sheet
Properties:high precision, small error and good quality, smooth surface, beautiful
Application:Widely used in the core of filter, medicine, filtering, breed, battery, mechanical protecting, making the crafts

tags:
perforated aluminum sheet,perforated sheet,

Inquiry now

Send email

We highly appreciate your feedback. TEL: 0086-10-68220585 E-mail: sales@kingdamesh.com

Mesh Description
Mesh Specification
Relevant Picture
Recommend Products

Perforated aluminum sheet
Materials: aluminum plate
Specifications of the perforated aluminum sheet
    Thickness: 0.1---5mm
    Hole size: 1--80mm
    Length: 0.5---6m
    Width: 0.1---3m
The above specification can also be decided by customer.
Hole shape of perforated metal: slot, round, square, hexagonal, diamond
Perforated aluminum sheet is produced by punching, notching, rolling, leveling, bending, slitting, forming, stamping etc.
Characteristics of the perforated aluminum sheet:
1. High precision, small error and good quality;
2. Smooth surface, beautiful, accurate holes, uniform array, and durability;
3. Resistance to bending, anti-aging and difficult to rust, high corrosion resistance;
4. easy to process; can paint or polish;
Applications of the perforated aluminum sheet:
Widely used in the core of filter, medicine, filtering, breed, battery, mechanical protecting, making the crafts, the meshes for the high-grade sound box, decorate, the seating for children, small basket and baskets.

If you are interested, please feel free to contact the following: TEL: 0086-10-68285557 E-mail: service.wzjd@hotmail.com

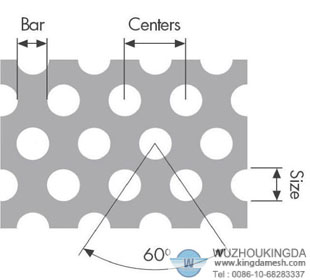

Reference specifications of the perforated aluminum sheet:

Plates	Net thickness (mm)	Aperture (mm)	Pitch (mm)	Net Width (m)	Net Long (m)	Punching rate (%)	weight (kg/m2)
Volume Plate	0.2	6	2	1	20	44	0.88
	0.35	5	4	1	20	24	2
	0.45	6	3	1	20	35	2.5
	0.8	3	3	1	20	19.6	3
Flat	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1.5	2	2	1	2	19.6	9.4
	3	5	16	1	2	19.6	18.8
Stainless steel plate	0.5	1	1	1	2	19.6	3.14
	0.8	1.5	1.5	1	2	19.6	5
	1	2	2	1	2	19.6	6.28
	2	5	16	1	2	19.6	6.28
Aluminum	0.5	1	1	1	2	19.6	1.08
	0.8	3	3	1	2	19.6	1.72
	1.5	2	2	1	2	19.6	3.24
	2	4	16	1	2	19.6	4.23
